AXIS 209FD/FD-R

Overview

Dimensions

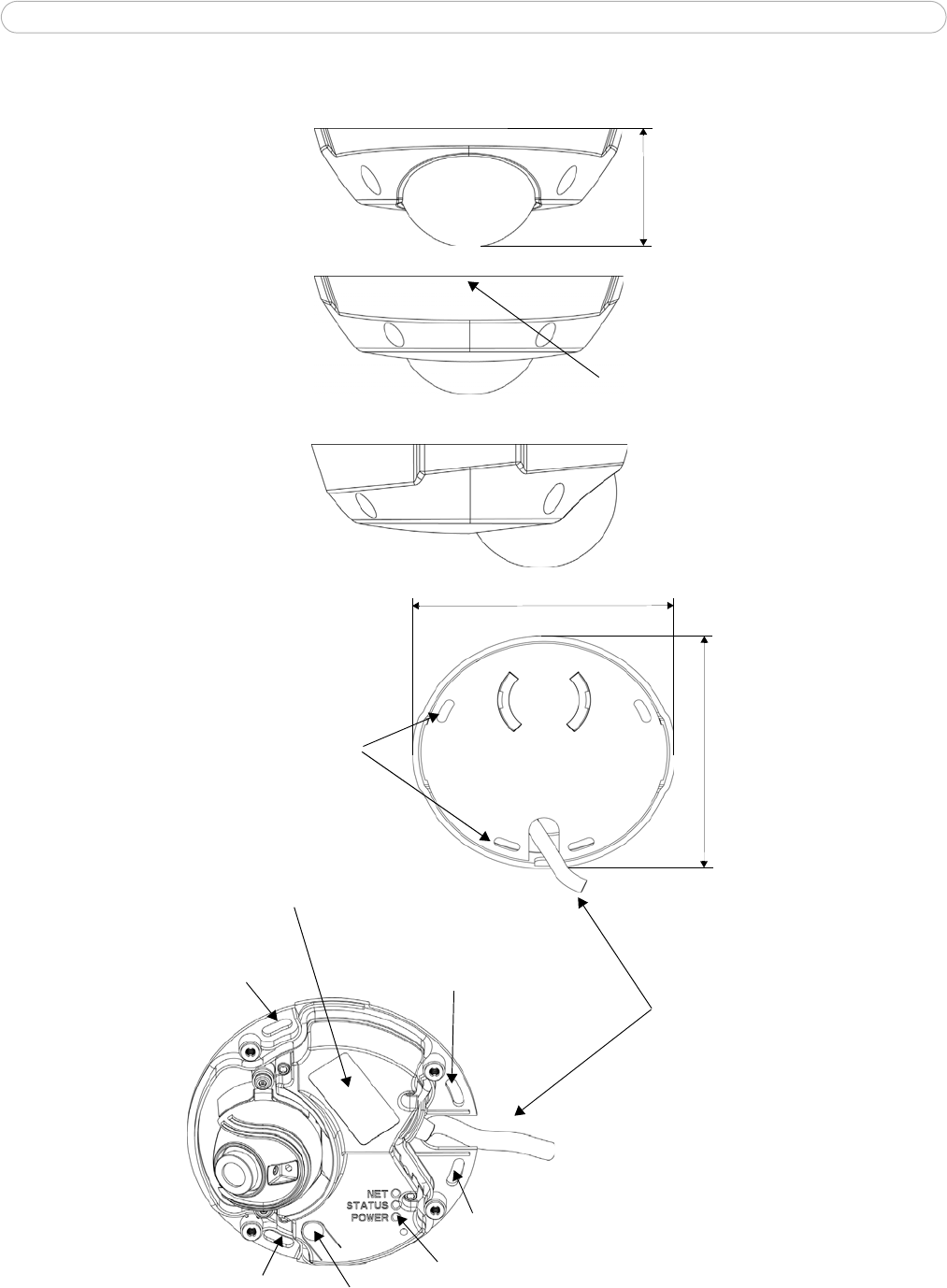

Diameter 1 = 102mm (4.02”), Diameter 2 = 100mm (3.94”)

Height = 39mm (1.54”)

Weight = 0.18 kg (0.40lb)

Front view

Rear view

Side view

Position of rear cable

exit (optional)

Base plate

Network cable with

connector

Screw holes

∅102mm

∅100mm

39mm

Indicator LEDs

Screw hole

Screw hole

Screw hole

Product ID & Serial

number (S/N) label

Screw hole

Control button
