56

AXIS 282/AXIS 282A - Unit Connectors

Unit Connectors

The following connectors are described in this section:

• The Terminal I/O Connector, on page

56

• The 34-Pin Header,

on page 57

The Terminal I/O Connector

The AXIS 282/AXIS 282A provides one 4-pin terminal I/O connector.

If the AXIS 282/AXIS 282A has been configured to

have power going in through the 34

I/O pins see Schematic Diagram - 34 I/O Pins, on

page 58, power can be configured to go

out through pin 1of the Terminal I/O

Connector.

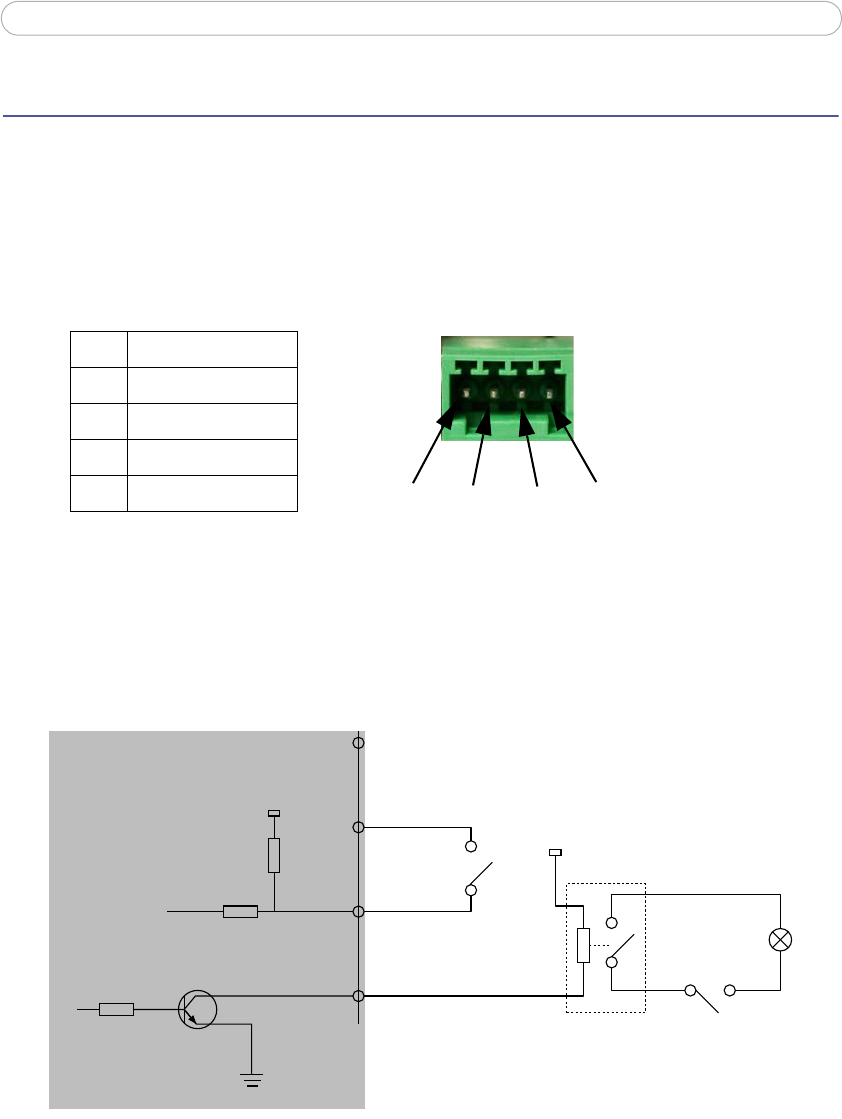

Schematic Diagram - Terminal I/O Connector

Pin Function

1 Power in/out (8 - 20V)

2 GND

3 I/O In

4 I/O Out

+3.3V

-

+

Pin 1 Power in/out (8 - 20V)

Pin 2 GND

Pin 3 I/O In

Pin 4 I/O Out

Note: The gray box shows components

located on the Axis 282/282A.

Pin 2Pin 1 Pin 3 Pin 4
