AXIS 282/282A - Product Description

Integration of the AXIS 282/282A into end products or systems

Electrical integration of the AXIS 282/282A is done through any of the connectors

described in the previous sections above.

Mechanical integration may be done through the 4

mounting holes on the AXIS 282/282A,

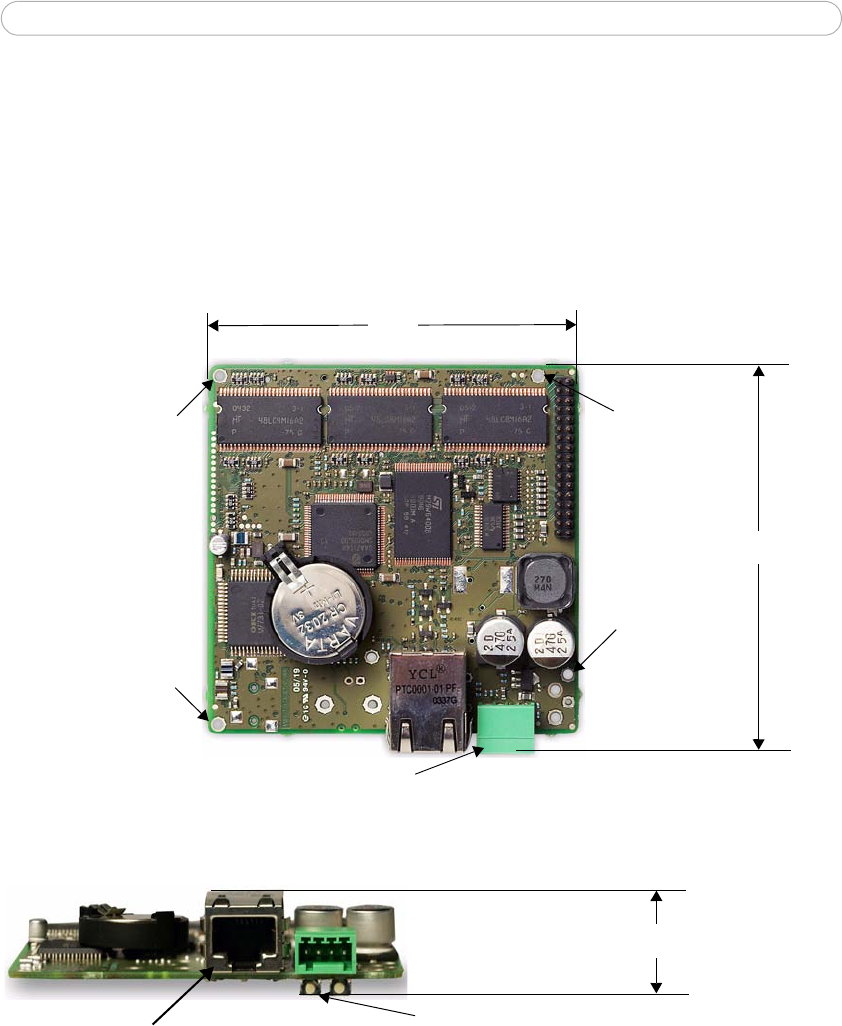

shown in the figure below.

The video server measures 82mm in

length from the outside edge of the Terminal

Connector, to the top of the AXIS 282/282A. The width of the AXIS 282/282A is 79mm.

The height of the AXIS 282/282A, from the top of the network connector to the b

ottom of

the control button is 19 mm as seen in the figure below.

Connector

79mm

82mm

Terminal Connector

Control button

19mm

Network connector
